Fortinet NSE7_PBC-7.2 - Fortinet NSE 7 Public Cloud Security 7.2 (FCSS)

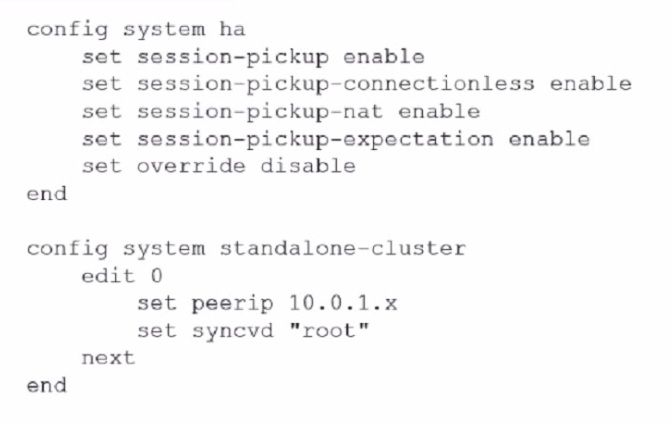

In an HA active-active load balance configuration with FortiGate VMs, especially in Microsoft Azure where FGSP (FortiGate Session Life Support Protocol) is used for session synchronization, the correct configuration for the peerip is:

D. The opposite FortiGate port 2 IP address.

HA Synchronization Requirements: FGSP requires direct communication between the FortiGates to synchronize the session table. This synchronization typically occurs over a dedicated HA link that connects the HA pair.

Asymmetric Traffic Considerations: FGSP allows asymmetric traffic to rejoin the correct session by synchronizing session information, including NAT and TCP sequence tracking between the FortiGate units in a cluster.

Configuration Specifics: For port 2, which is facing the internal load balancer, the peerip should be set to the corresponding port 2 IP address of the opposite FortiGate. This allows the internal interfaces to communicate directly with each other for session synchronization purposes, which is crucial in an active-active deployment to ensure sessions persist during failover scenarios.

References: The choice of using port 2's IP address for FGSP is supported by the Fortinet documentation, which explains how FortiGates should be configured for HA, especially in cloud environments where traditional HA links may not be available.

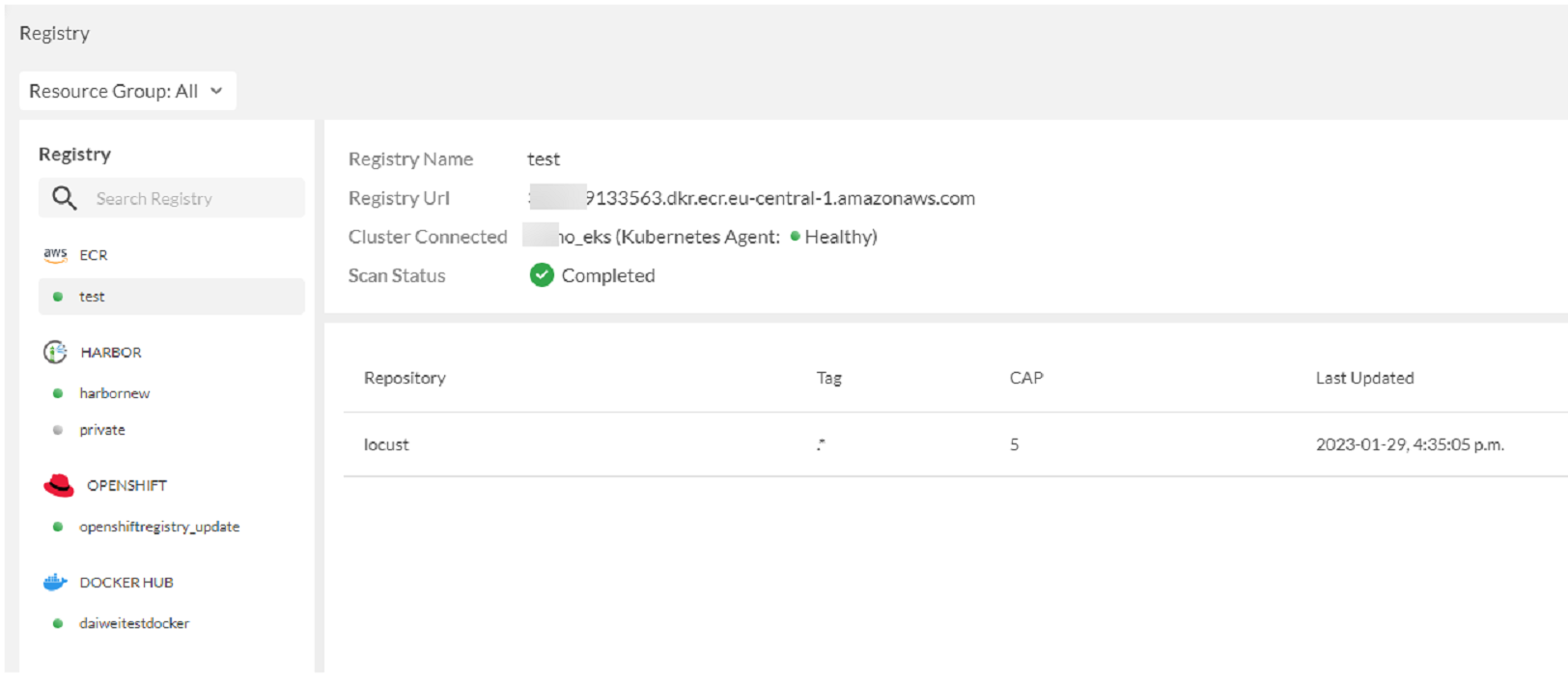

The exhibit shows the results of a FortiCNP registry scan, which is part of the FortiCNP container protection. FortiCNP’s Container Protection provides deep visibility into the security posture of container registries and images1. The registry scan utilizes Common Vulnerabilities and Exposures (CVE) index regularly updated by NVD to detect underlying vulnerabilities, security flaws, and provides security best practices2. The registry scan is performed at the registry level, and it can scan all images in a repository if the Tag section is left blank when adding a repository2. The CAP section stands for Container Assurance Policy, which defines the minimum number of images to be scanned per repository3. Therefore, the correct statements are A and C. References: Container Image Scan | FortiCNP 22.3.a, FortiCNP, Cloud Native Application Protection Platform | FortiCNP

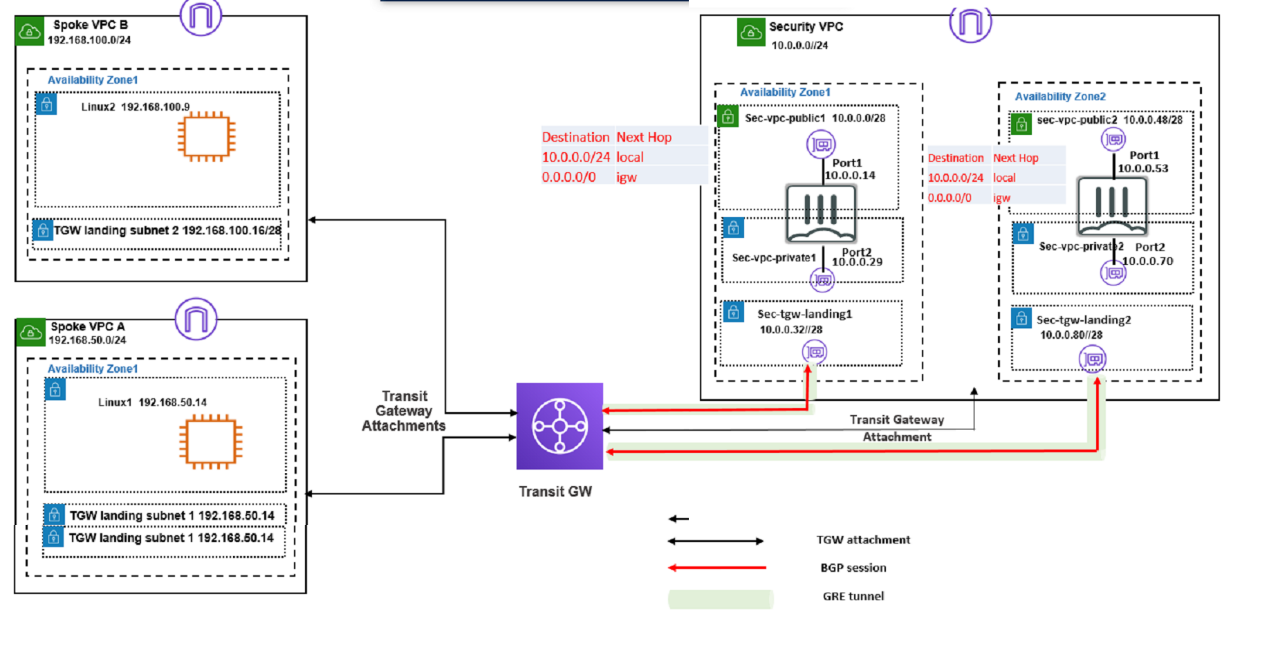

The correct answer is B and C. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To send outbound traffic from the Linux instances to the internet through the security VPC, you need to do the following steps:

In the main subnet routing table in the spoke VPCs, add a new route with destination 0.0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

In the main subnet routing table in the security VPC, add a new route with destination 0.0.0.0/0, next hop FortiGate port2. This route directs all traffic from the TGW to the FortiGate internal interface, where it can be inspected and allowed by the FortiGate policies.

The other options are incorrect because:

Adding a 0.0.0.0/0 traffic route to the Internet Gateway (IGW) in the spoke VPCs is not correct, as this would bypass the TGW and the security VPC and send all traffic directly to the internet.

Adding a 0.0.0.0/0 traffic route to the TGW in all the VPCs is not necessary, as only the spoke VPCs need to send traffic to the TGW. The security VPC needs to send traffic to the FortiGate port2.

Transit Gateways - Amazon Virtual Private Cloud : Fortinet Documentation Library - Deploying FortiGate VMs on AWS

For configuring the failover settings on a FortiGate active-passive SDN connector solution in Microsoft Azure, the two mandatory settings required after the initial deployment are:

A. Subscription-id

D. Resource group name

Subscription ID: This is a unique identifier for your Azure subscription under which all resources are created and billed. FortiGate needs this to interact with the Azure resources associated with that subscription.

Resource Group Name: A resource group in Azure is a container that holds related resources for an Azure solution. The SDN connector requires the resource group name to correctly identify and manage the resources it should control, especially in a failover scenario.

References: The requirement for these specific details is found in Azure's best practices for resource management and Fortinet's documentation on deploying and configuring FortiGate appliances in Azure environments.

Immutable infrastructure is a DevOps approach that emphasizes the creation of disposable resources instead of modifying existing ones1. This approach helps to achieve stability, consistency, and predictability in IT operations by reducing the risk of configuration drift and eliminating stateful components1.

One way to implement immutable infrastructure is to use a blue-green deployment strategy, which runs two live environments for configuration changes2. The blue environment is the current production environment, while the green environment is the new version of the application or service. When the green environment is ready, the traffic is switched from blue to green, and the blue environment is destroyed or kept as a backup2. This way, there is no need to update or patch the existing infrastructure, but rather replace it with a new one.

References:

1: Immutable Infrastructure, Architecture, and its benefits

2: Introduction to Immutable Infrastructure – BMC Software | Blogs

To configure a FortiGate VM to add to FortiCNP, you need to perform three steps on FortiGate:

Enable send logs in FortiGate to allow FortiCNP to receive the IPS logs from FortiGate.

Create an SSL/SSH inspection profile on FortiGate to inspect the encrypted traffic and apply IPS protection.

Create an IPS sensor and a firewall policy on FortiGate to enable IPS detection and prevention for the traffic.

References:

FortiCNP 22.4.a Administration Guide, page 22-24

FortiGate IPS Administration Guide, page 9-10

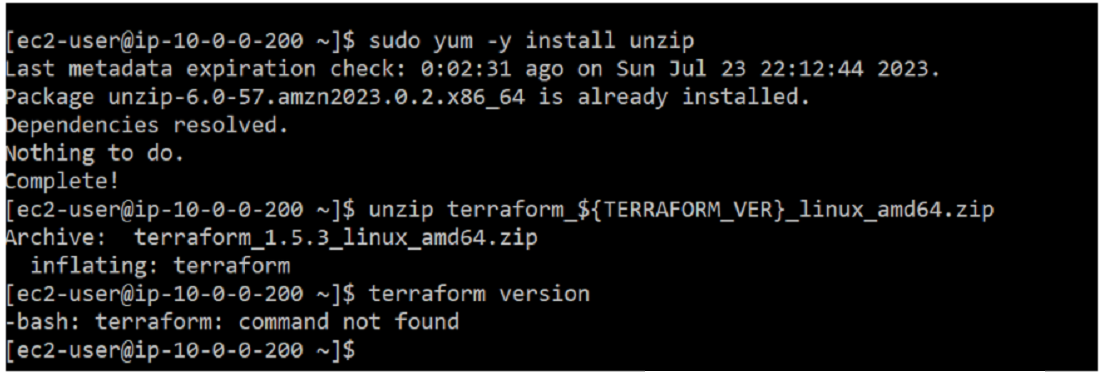

According to the Terraform documentation for installing Terraform on Linux1, you need to download a zip archive that contains a single binary file called terraform. You need to unzip the archive and move the binary file to a directory that is included in your system’s PATH environment variable, such as /usr/local/bin. This way, you can run the terraform command from any directory without specifying the full path1.

If you do not move the binary file to the bin directory, you will get a command not found error when you try to run the terraform version command, as shown in the screenshot. To fix this error, you need to move the binary file to the bin directory or specify the full path of the binary file when running the command1.

1: Install Terraform | Terraform - HashiCorp Learn

When adding the Amazon Web Services (AWS) account to the FortiCNP, you must follow these three mandatory configuration steps:

Add AWS accounts through FortiCNP. This is the first step to enable cloud protection for your AWS account. You can add one or multiple accounts automatically or manually. You need to provide the AWS account ID and a name for the account. You also need to select the optional permissions to be granted to FortiCNP as needed1.

Accept FortiCNP to create CloudTrail for the account. This is required for FortiCNP to collect and analyze the AWS API calls and events. You can choose to let FortiCNP create a CloudTrail for the account or use an existing one. You also need to specify the aggregation region for the CloudTrail1.

Launch the CloudFormation template. This is required for FortiCNP to create a stack and a role in your AWS account. The stack contains the resources that FortiCNP needs to access and monitor your AWS account. The role allows FortiCNP to assume it and perform actions on your behalf. You need to enter a custom or default role name and a unique UUID that is designated for your company on FortiCNP1.

References: Add AWS Account Automatically

https://docs.fortinet.com/document/forticnp/22.4.a/online-help/246021/add-aws-account-automatically
