Fortinet NSEI_OTS_AR-7.6 - Fortinet NSE I - OT Security 7.6 Architect

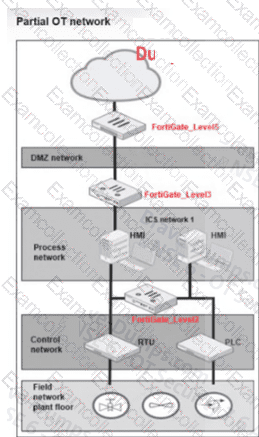

The correct answers are B. IPS on FortiGate_Level5 and C. Virtual patching on FortiGate_Level2 .

The study guide explains that “the first line of defense is securing the IT side of your network” and that FortiGate should be placed to protect ICS environments and stop threats from propagating from IT into OT. It also states that IPS improves OT security because “today’s threat landscape requires IPS to block a wider range of threats and improve OT security” and that in IPS mode, vulnerable devices are protected . This makes FortiGate_Level5 , at the upper boundary near the DMZ and external connectivity, the correct place to implement IPS as a primary protection control.

The study guide also states in the Purdue model section that “Level 2 consists of the processes and programs that control the PLCs, RTUs, and IEDs found at Level 1” and that “it is necessary to segment, or even microsegment, these servers with firewall segmentation, along with policies that include application control and virtual patching.” In addition, the virtual patching section says “Virtual patching protects OT devices that have not yet been updated against vulnerability exploits” and applies when traffic related to the vulnerable device reaches the firewall policy. Since FortiGate_Level2 sits between the process network and the control network, it is the right enforcement point for virtual patching to protect the PLC-side assets.

Option A is not one of the best answers because offline IDS only detects and logs attacks; the guide says “no traffic flows through FortiGate” in offline IDS mode, whereas IPS can actually block threats. Option D is also not the best answer because OT signatures are enabled within the IPS framework, but the stronger control explicitly described for this design is to deploy IPS at the upper boundary and virtual patching closer to vulnerable OT devices .

The correct answers are C and D .

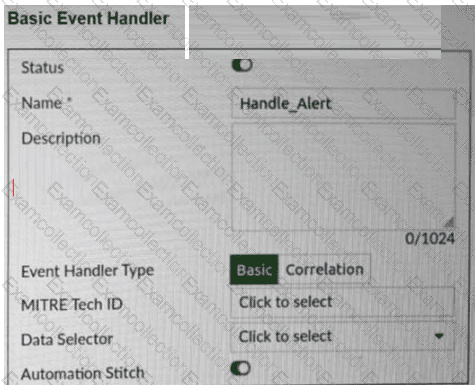

Option D is correct because the study guide states that the configuration of an event handler can include “Rules” and explains that “Rules are granular conditions” and “Event handlers can have one or more rules.” It further states that “FortiAnalyzer uses event handlers to filter all incoming logs” and “If logs match the conditions configured in an event handler, FortiAnalyzer generates an event.” Therefore, to use the automation stitch, you must define the rules on FortiAnalyzer so the event handler can actually generate the event that starts the automation flow.

Option C is also correct. The study guide explains that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to the FortiGate side, and in the attack-detection example it says “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” It also explicitly shows “Stitches configured on root FortiGate.” This means the FortiGate must have the corresponding automation trigger configured for the FortiAnalyzer event handler notification.

Option A is incorrect because the study guide does not describe configuring an Action on FortiAnalyzer as the required step for this FortiAnalyzer-to-FortiGate automation-stitch flow. Option B is also incorrect because playbooks are a different FortiAnalyzer automation mechanism; the question specifically refers to using the Automation Stitch option in the event handler.

The correct answer is D. Automatically by an event handler . The study guide explicitly states that “Event handlers generate events on FortiAnalyzer” and “FortiAnalyzer uses event handlers to filter all incoming logs. If the logs received match the conditions set in the event handlers, FortiAnalyzer generates an event.” It also says “You can view all generated events on the Event Monitor page.” This directly matches the exhibit, which is showing entries on the Event Monitor page. Therefore, the attack shown there was detected automatically through an event handler .

The guide also explains the detection flow: “FortiAnalyzer receives logs,” “FortiAnalyzer parses logs,” and “FortiAnalyzer generates an event if a rule is matched in an event handler.” In addition, the Event Monitor view includes the Handler column, which identifies the event handler that generated the event. That is why the attack is not considered manually detected, and it is not primarily detected by a playbook or stitch. Playbooks and stitches are used for subsequent automation actions, but the event appearing in Event Monitor is created by the event handler mechanism.

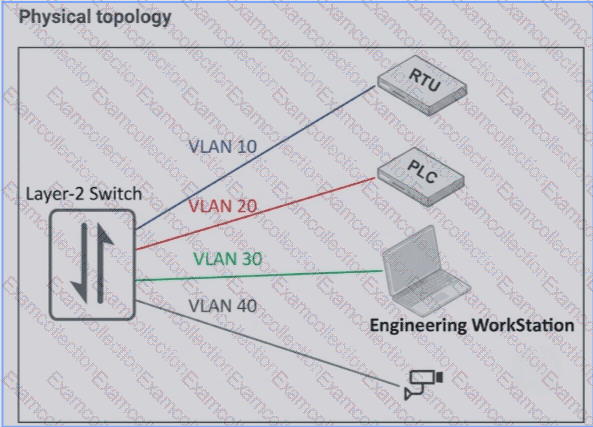

The correct answer is D. You must configure a layer 3 switch .

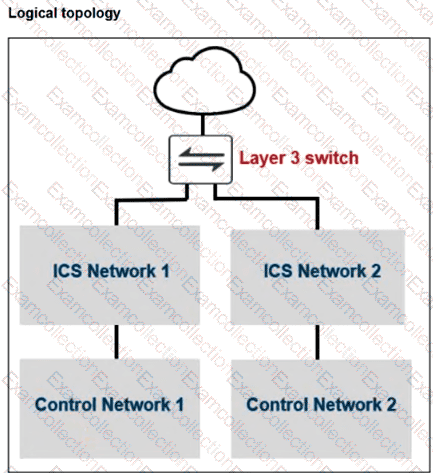

The study guide explains that “Layer 2 devices can add or remove tags” but “cannot modify them.” It then states that “A layer 3 device, such as a router or FortiGate, can modify the VLAN tag before routing the packet. This allows them to route traffic between VLANs.” It also explicitly describes “Router on a Stick” as “a way to allow routing between VLANs.” Since the exhibit shows a layer-2 switch and the Engineering Workstation and PLC are placed in different VLANs, inter-VLAN communication requires layer-3 routing.

The other options do not solve this requirement. intra-switch-policy explicit/implicit applies to a software switch , where member interfaces are in the same broadcast domain and same subnet, not to routing between separate VLANs. forward domain IDs are used in transparent mode to confine broadcasts to specific broadcast domains; they do not provide inter-VLAN access. Therefore, to let the Engineering Workstation in one VLAN reach the PLC in another VLAN, you need a layer 3 routing function , which matches option D .

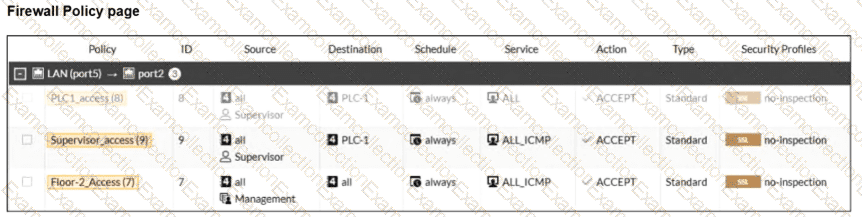

The correct answer is A . Policy ID 8 contains the Supervisors user group, so authentication is required for traffic matching that policy. However, policy ID 9 permits traffic to PLC-1 without a user or user-group authentication requirement. Fortinet explains that when an authentication policy is followed by a fall-through policy that does not require authentication , traffic can match the fall-through policy and proceed without generating a login prompt. This is particularly relevant because the default CLI setting is auth-on-demand implicitly. Under the default implicitly behavior, FortiGate does not trigger active authentication when a matching unauthenticated fall-through policy exists. Setting auth-on-demand always, or requiring authentication on all potentially matching policies, changes that behavior. Therefore, HTTPS succeeds without prompting because authentication was not configured on firewall policy ID 9 .

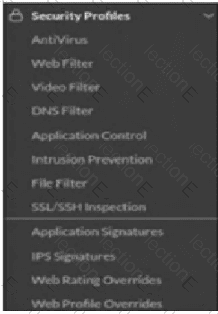

The correct answer is A. You must enable Virtual Patching in the Feature Visibility section .

The study guide states clearly that “By default, virtual patching profiles are hidden on the GUI, and you must enable them through System > Feature Visibility.” That exactly matches the situation in the exhibit, where Virtual Patching does not appear under Security Profiles . So the issue is not that the feature is unsupported, but that it is simply hidden in the GUI until it is enabled.

The other options do not answer the question being asked. A valid OT security service license is required for virtual patching signatures and protection workflow, and OT signatures are relevant to IPS-based OT protection, but those do not explain why the menu item itself is missing from the Security Profiles section . The guide specifically identifies Feature Visibility as the reason the Virtual Patching profile is not shown in the GUI. Therefore, the required action is to enable Virtual Patching in System > Feature Visibility .
