Salesforce Salesforce-MuleSoft-Developer-I - Salesforce Certified MuleSoft Developer (Mule-Dev-201)

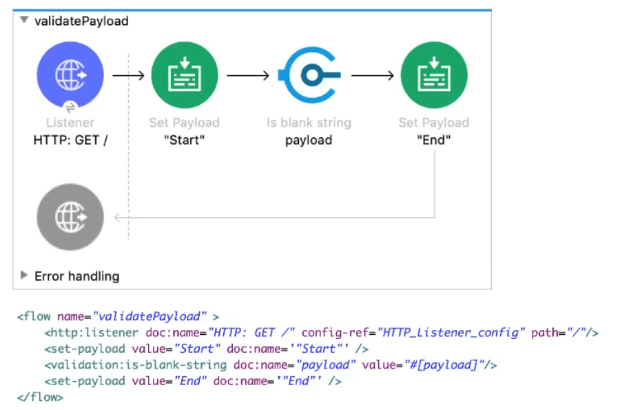

1. SetPayload “Start”

2. 'Is Balnk String' Creates an Error object with #[error.description] =“String is not blank”

3. Default Error Handler catches and Propagates error

4. 'On Error Propogate' is 'RED IN RED OUT'. It Returns Status Code : 500 & #[error.description]

--------------------------------------------------------------------------------------------------------------------------

Correct answer is String is not blank. Because validation component will throw an error as payload is not blank.

A picture containing timeline Description automatically generated

Bottom ofForm

Top of Form

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route1 execution and the others are not checked. If none of the expressions are true, then thedefault route executes. Hence only Route1 will be executed as it is the first expression. hence output of logger is Route1.

MuleSoft Doc Ref : https://docs.mulesoft.com/mule-runtime/4.3/choice-router-concept

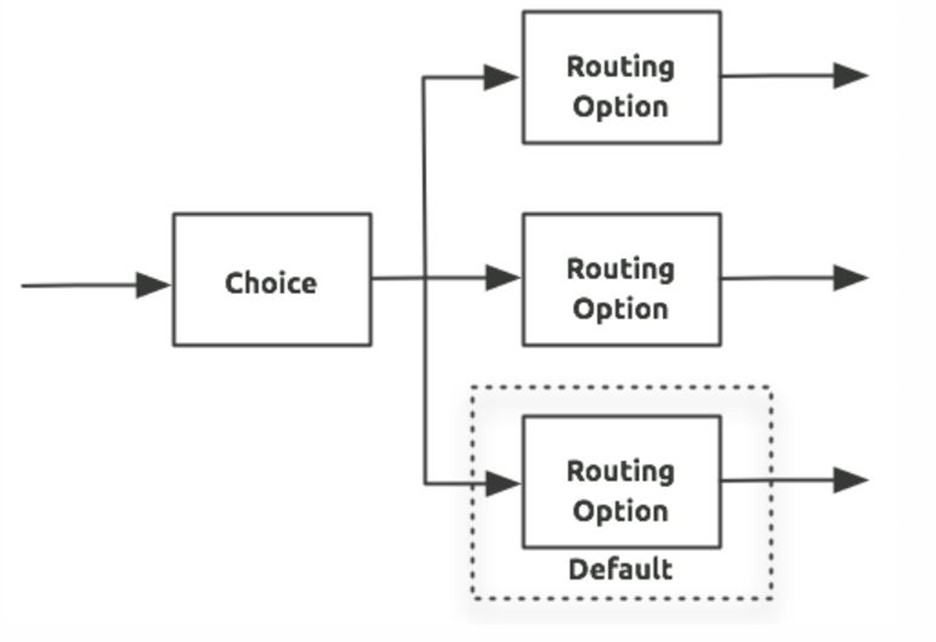

The Choice router dynamically routes messages through a flow according to a set of DataWeave expressions that evaluate message content. Each expression is associated with a different routing option. The effect is to add conditional processing to a flow, similar to an if/then/else code block in most programming languages.

Only one of the routes in the Choice router executes, meaning that the first expression that evaluates to true triggers that route’s execution and the others are not checked. If none of the expressions are true, then the default route executes.

Diagram Description automatically generated

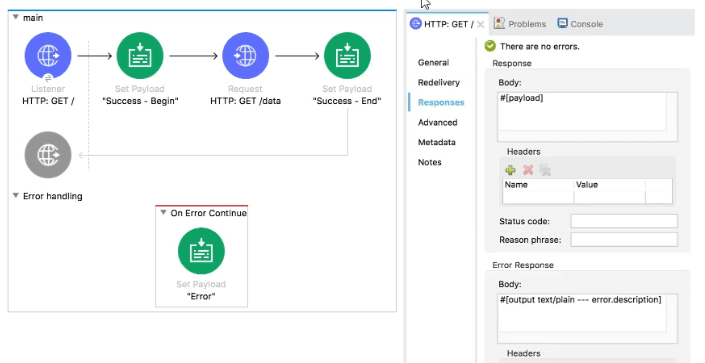

Correct Answer: Response body: "Error" Default response status code: 200.

-------------------------------------------------------------------------------------------------------------------------------------------------

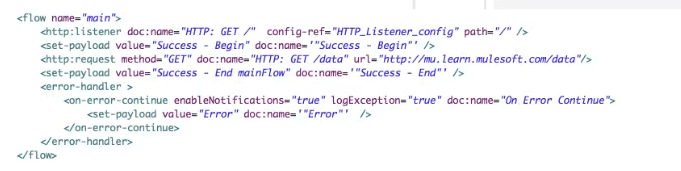

1) Payload is successfully set to “Success – Started Flow”

2) When HTTP Request throws an error, execution halts

#[error.description] = “ABC"

#[error.errorType] = "XYZ"

3) The On Error Continue scope handles the error. When On Error Continue scope is invoked, all the processors in error block are executed and success response is sent back to the client with payload which is set in error flow. In this case payload is set to "Error" value in error block.

4) “Error” is returned to the requestor in the body of the HTTP request with HTTP Status Code: 200 as On error continue always sendssuccess error code.

Reference Diagram:

Timeline Description automatically generated with medium confidence

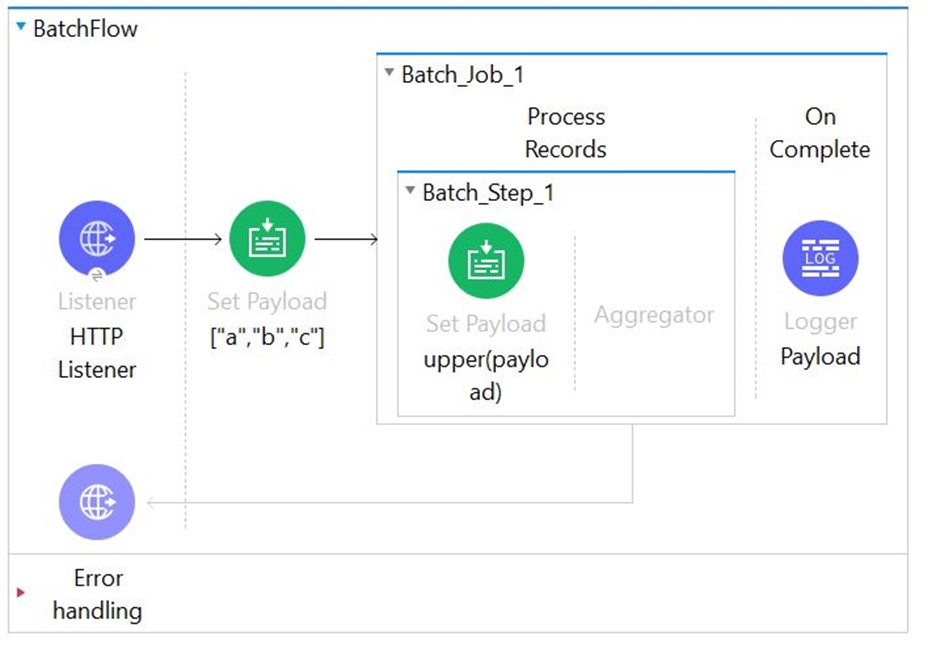

Correct answer is as below. On complete phase only has access to batch job result statistics and payload is not available.

TotalRecordsProcessed:3

SuccessfulRecords:3

FailedRecords:0

On Complete

During this phase, you can optionally configure the runtime to create a report or summary of the records it processed for the particular batch job instance. This phase exists to give systemadministrators and developers some insight into which records failed to address any issues that might exist with the input data.

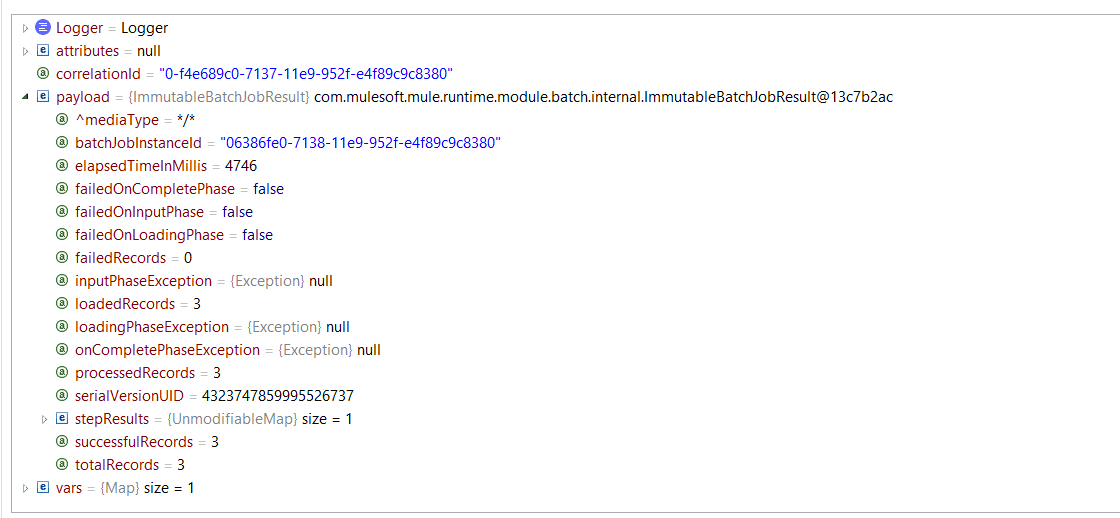

Sample output is as below

Mule Ref Doc : https://docs.mulesoft.com/mule-runtime/4.3/batch-processing-concept#on-complete

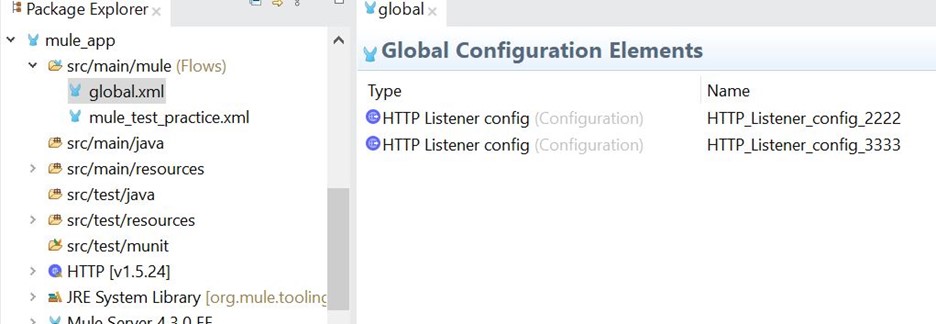

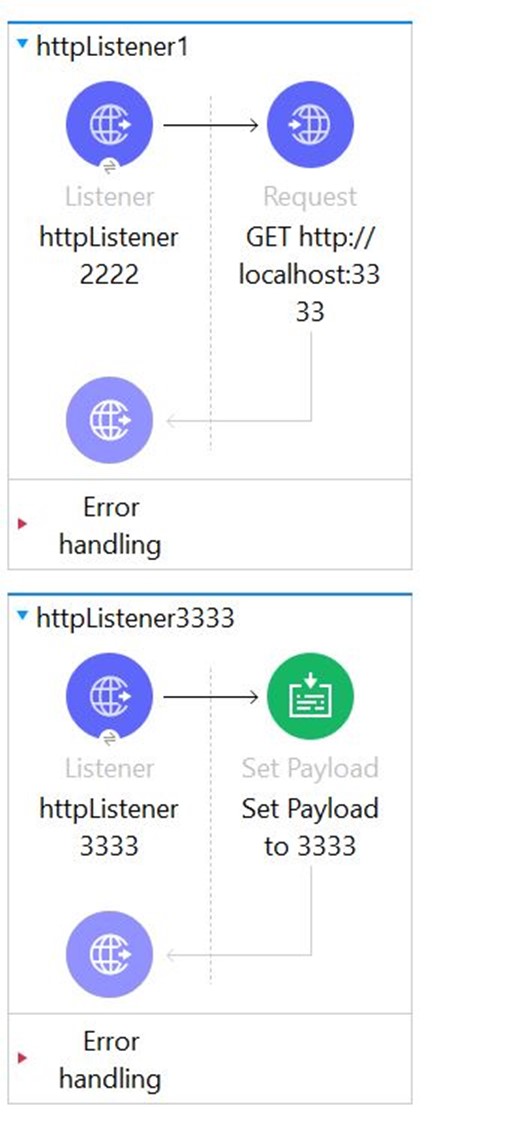

In this case both the flows can start without any error and requests can be received on both ports. Flow names httpListener1 can call other flow using HTTP request without any issues.

Hence correct answer is

The mule application start successfully

Web client requests can  be received at URI on port 2222 and on port 3333.

Lets check why other options are incorrect

1) The mule application fails to start. There isURL path conflict because both HTTP Listeners are configured with same path  ---- This is incorrect as port value is different in both listeners

2) The mule application start successfully. Web client requests can only be received at URI on port 2222 but not on port 3333  --- This is incorrect as there is no reason for not receiving requests on port 3333

3) The mule application fails to start because of the port binding conflict as HTTP request also use same port i.e. 3333 --- Port binding conflict will nothappen in this case. It would have if both listener configurations would have been on same port . But that is not the case here.

Mule Ref Doc : HTTPListener Reference - Mule 4 | MuleSoft Documentation

Attributes are replaced with new attributes from the HTTP Request response.

Attributes include everything apart from Payload/body. For ex: Headers, query parameters, URI parameters.

So, when outbound HTTP request is made, new attributes need to passthe outbound HTTP request and old attributes are replaced.

I have created below diagram to make it easy for you to understand:

Diagram Description automatically generated
