UiPath UiPath-ADAv1 - UiPath Automation Developer Associate Exam (2023.10)

The best practice for storing credentials securely in UiPath is to use an Orchestrator Asset.

Orchestrator Assets allow secure storage and retrieval of sensitive information.

Credentials stored in Orchestrator cannot be exposed in logs and are encrypted.

When used in automation, the values are retrieved dynamically, reducing the risk of hardcoded credentials.

✅ Why other options are incorrect:

A (Hardcoded values): Storing credentials in the workflow is insecure and violates best practices.

B (Config.xlsx): Excel files are not secure and can be accessed by anyone with file permissions.

C (Local file): If credentials are stored locally, they become a security risk and are not easily maintainable across multiple bots.

✅ Reference: UiPath Orchestrator - Assets

The Object Repository tree structure follows a hierarchical order that starts with the Application node, which represents the application or system that contains the UI elements to be automated. Under the Application node, there can be one or more Version nodes, which specify the version of the application or system. Each Version node can have one or more Screen nodes, which represent the different screens or windows of the application or system. Finally, each Screen node can have one or more UI Element nodes, which are the individual UI elements that can be used for automation. (UiPath Automation Developer study guide)

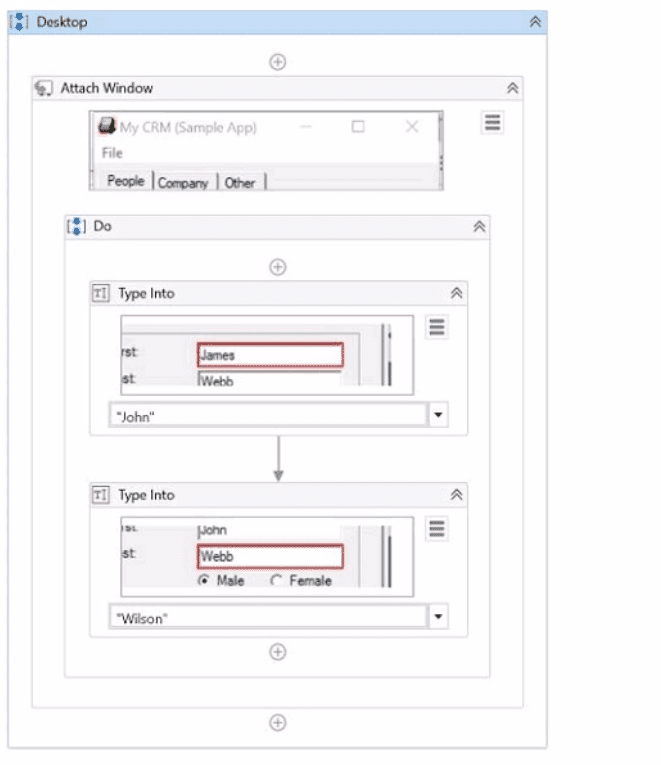

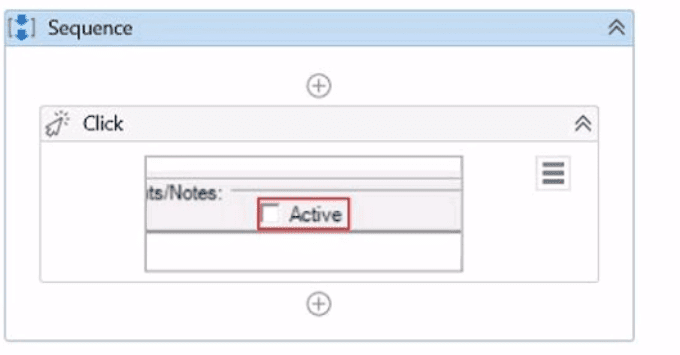

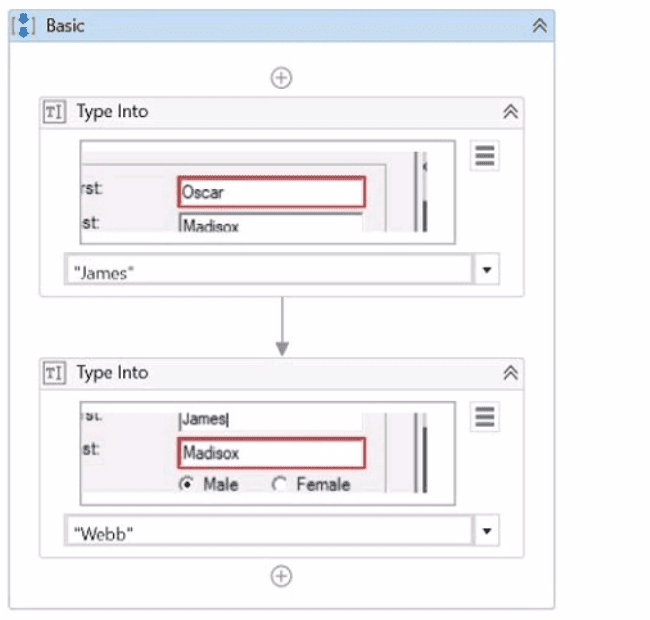

A partial selector is a selector that does not contain the information about the top-level window. A partial selector is usually generated when a UI Automation activity is included in a container activity, such as Attach Browser or Attach Window, that has a full selector of the outer window. This way, the UI Automation activity can use the partial selector relative to the container, instead of the full selector from the root. A partial selector is indicated by the icon in the Properties panel of the UI Automation activity. In this question, the sequence that contains an activity with a partial selector is Option B, where the Click activity has the partial selector icon and is enclosed in an Attach Window activity. The other options have activities with full selectors, indicated by the icon . Therefore, the answer is B. Option B. References: Full Versus Partial Selectors, Selectors

In UiPath Studio, when creating a variable, the "Default" field is optional. The "Default" field is where you can assign an initial value to the variable, which it will hold until changed during the execution of the workflow. The "Variable type" must be specified to determine what kind of data the variable will hold. The "Name" is required to reference the variable within the workflow, and the "Scope" determines where the variable can be accessed from within the project.

The recommended type of workflow for designing a complex business process using UiPath Studio is Flowchart. Flowcharts are suitable for a more complex business logic, as they enable you to integrate decisions and connect activities in a more diverse manner, through multiple branching logic operators. Flowcharts can also be used as a part of other diagrams, such as Sequences or State Machines3. Flowcharts provide a clear and visual representation of the flow of the process, as well as the possible outcomes and exceptions. Flowcharts can also be easily modified and expanded, as new activities and branches can be added or removed4. References: Flowchart and Understanding the Concept of Workflow of UiPath from UiPath documentation and Medium.

To convert ExtractedDate to a DateTime type, the expression that should be used is:

DateTime.Parse(ExtractedDate)

This expression uses the DateTime.Parse method, which converts a string representation of a date and time to its DateTime equivalent. The DateTime.Parse method can accept different formats of date and time strings, as long as they are supported by the current culture or a specified culture. The DateTime.Parse method returns a DateTime object that represents the date and time value of the string1. For example, if the ExtractedDate variable has the value:

ExtractedDate = “08-22-2022”

Then the expression DateTime.Parse(ExtractedDate) will return a DateTime object with the value:

[08/22/2022 12:00:00 AM]

This DateTime object can then be used to perform a comparison with a different date, such as using the DateTime.Compare method or the comparison operators2.

The main difference between UiPath Studio and UiPath StudioX is their target audience and functionality. UiPath Studio is aimed at technical users and allows for complex automation development, including the ability to split automations into smaller workflows that can be invoked from within other workflows. On the other hand, StudioX is designed for non-technical business users to automate tasks without writing code, and while it does allow for simpler workflows, it does not have the same depth of functionality as Studio for modularizing workflows.

Comprehensive and Detailed In-Depth Explanation:

The If activity in UiPath is a control flow activity that evaluates a Boolean condition and determines the execution path accordingly:

If the condition evaluates to True, the workflow executes the Then branch.

If the condition evaluates to False, the workflow executes the Else branch.

Only one of the two branches is executed, depending on the condition.

Why the other options are incorrect?

❌ B: The If activity does not have a "priority-based execution"; it simply follows the condition’s result.

❌ C: A multi-condition evaluation requires a Switch or Flow Decision activity, not an If activity.

❌ D: If does not execute both branches; only one branch is executed at a time.

✅ Reference:

UiPath Official Documentation: Control Flow - If Activity

UiPath Academy: Building Workflows - Conditional Statements

The recommended variable type for storing password values, even if they are composed solely of numbers, is SecureString. A SecureString is designed to provide a more secure way to handle sensitive information as it keeps the data encrypted in memory, making it less vulnerable to potential risks such as memory dumps compared to regular string types.

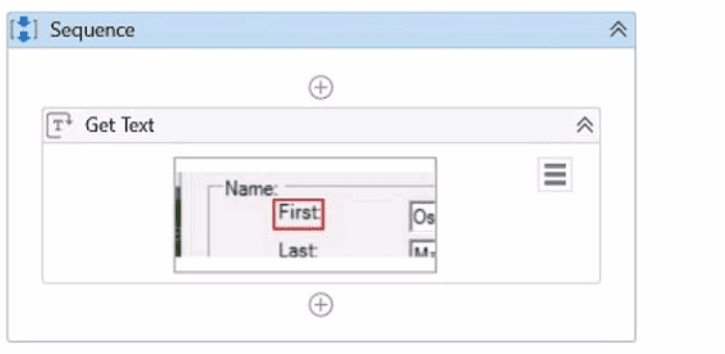

The Get Text activity is used to extract the text value of a specified UI element. It does not use any of the scraping methods by default, but it can be configured to use the Full Text method in the Properties panel. The Full Text method is able to capture hidden text from an application, as well as the entire visible text and editable text. The Full Text method uses an internal OCR engine that works with most applications and languages.
