UiPath UiPath-ADAv1 - UiPath Automation Developer Associate Exam (2023.10)

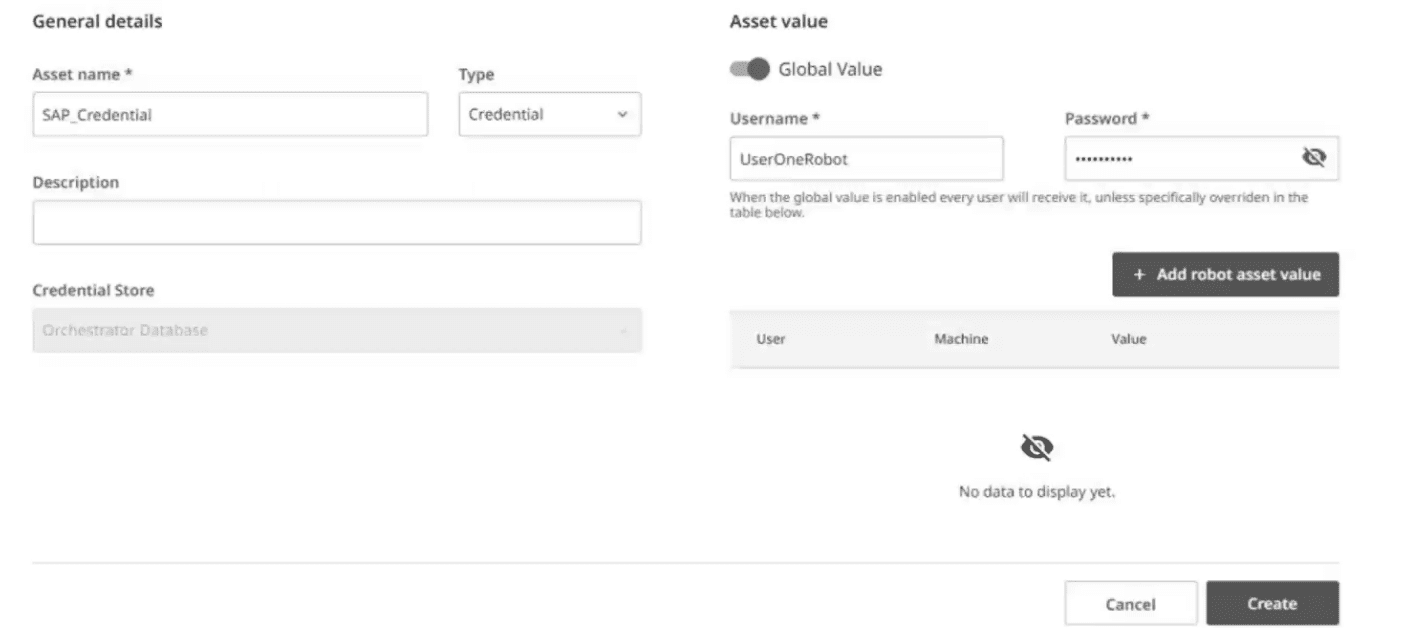

In Orchestrator, when a Credential asset is created and the username value is changed, the password must also be changed to ensure that the credential set remains valid. The username and password are linked as they represent the credential pair used for authentication. Changing one without the other would result in mismatched credentials that cannot be used for logging in to the system that these credentials are associated with. Therefore, the correct answer is D.

The Use Foreground activity can be used to transition a Background Process to Foreground. It allows you to perform UI automation tasks that require user interaction or visibility1. The other activities are not suitable for this purpose.

Understanding the Expression:

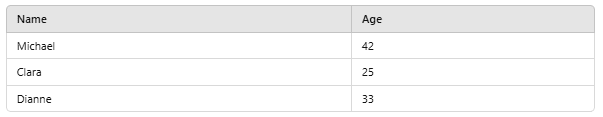

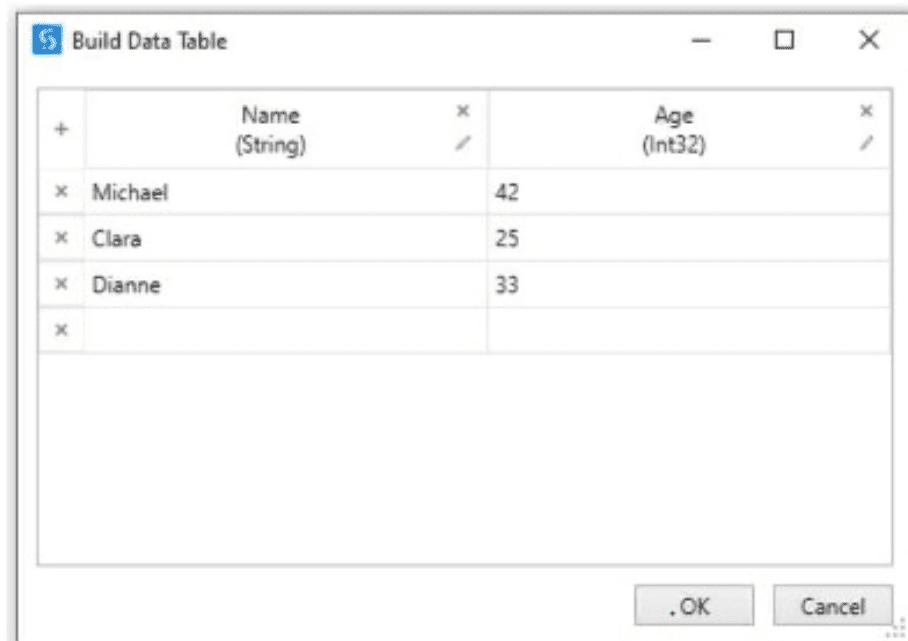

The expression DT.Rows(0)(1).ToString + DT.Rows(1)(0).ToString retrieves values from the DataTable using row and column indexes:

DT.Rows(0)(1).ToString → This refers to Row 0, Column 1:

Row 0: "Michael" (Column 0), 42 (Column 1)

Column 1 (Index 1) in Row 0 = 42

Result: "42"

DT.Rows(1)(0).ToString → This refers to Row 1, Column 0:

Row 1: "Clara" (Column 0), 25 (Column 1)

Column 0 (Index 0) in Row 1 = "Clara"

Result: "Clara"

Concatenating the Results:

"42" + "Clara" = "42Clara"

✅ Final Output: "42Clara"

Why Other Options Are Incorrect:

❌ A. MichaelClara → Incorrect because "Michael" is at DT.Rows(0)(0), not DT.Rows(0)(1).

❌ C. 42Michael → Incorrect because "Michael" is at DT.Rows(0)(0), but we are accessing DT.Rows(1)(0), which is "Clara".

❌ D. 25Clara → Incorrect because 25 is at DT.Rows(1)(1), but we are accessing DT.Rows(0)(1), which is 42.

Final Answer and Output:

✅ Answer: B. 42Clara

✅ Reference:

📌 UiPath Documentation – DataTable Manipulation

📌 UiPath - Working with Rows and Columns

 The REFramework template is a robust and scalable framework for building RPA projects1. It uses a state machine to handle the different stages of the automation process2. One of the states is the Process Transaction state, where the main actions are performed on each transaction item3. A transaction item can be a queue item from Orchestrator, a data row from an Excel file, or any other type of data that needs to be processed. If the transactions are stored in an Excel table, the best variable type for TransactionItem is System.Data.DataRow, as it represents a single row of data in a DataTable. A DataTable is a collection of rows and columns that can be read from or written to an Excel file using the Excel activities. Therefore, option A is correct.

Option B is incorrect because UiPath.Core.QueueItem is a variable type that represents an item from a queue in Orchestrator. If there is no Orchestrator in the environment, queues cannot be used and QueueItem is not applicable. Option C is incorrect because System.Data.DataTable is a variable type that represents a table of data with rows and columns. A single transaction item cannot be a whole table, but only a row from the table. Option D is incorrect because System.Data.DataRow[] is a variable type that represents an array of data rows. An array is a collection of items of the same type that can be accessed by an index. A single transaction item cannot be an array, but only an element from the array.

When a developer selects "Step Out" from the Debug section in UiPath Studio's ribbon interface while examining a suspended state upon reaching a breakpoint, the executor will be directed to the activity that called the current container (or the next activity in the higher scope). In the context of the provided sequence structure, stepping out from A1 (assuming that's where the breakpoint is) would go to the next higher scope, which is S2, as it is the sequence that contains A1. Therefore, the correct answer is D (S2 in the image).

The recommended method to ensure the selector identifies the correct PDF to use is to use the * wildcard character in place of the “X” in the title attribute value. The * wildcard character is a symbol that can replace zero or more characters in a string. It can be used to handle dynamic elements in a selector, such as the title of a PDF file that changes for each report2. For example, if the selector for the PDF file is:

Then the selector can be modified as:

This selector will match any PDF file that has a title starting with “Report” and ending with “PDF”, regardless of the number in between. This way, the selector can identify the correct PDF file to use, even if other PDF files are open on the desktop, as long as only one report is open at a time.

The REFramework template is a robust and scalable framework for building RPA projects1. It uses a config file to store the settings and constants that are used throughout the project2. The config file has two sheets: Settings and Assets. The Settings sheet contains the key-value pairs that are read by the InitAllSettings workflow and stored in the config dictionary. The Assets sheet contains the names of the assets that are stored in Orchestrator and need to be retrieved by the InitAllApplications workflow. The OrchestratorQueueName key is used to specify the name of the queue that is used to store the transaction items for the process. If the OrchestratorQueueName key is present in both the Settings and Assets sheets, but an asset with the corresponding name is not present in Orchestrator, the behavior at run time will be as follows:

The InitAllSettings workflow will read the value of the OrchestratorQueueName key from the Settings sheet and store it in the config dictionary.

The InitAllApplications workflow will try to retrieve the asset with the name OrchestratorQueueName from Orchestrator using the Get Asset activity. Since the asset does not exist, the activity will throw an exception.

The exception will be caught by a Try Catch block and handled by a Log Message activity with level Warning and message “Asset not found: OrchestratorQueueName”.

The flow will continue with the next asset in the Assets sheet or move to the next state if there are no more assets.

The flow will use the value of the OrchestratorQueueName key from the config dictionary whenever it needs to access or update the queue.

Therefore, option B is correct. Option A is incorrect because the exception is thrown in InitAllApplications workflow, not InitAllSettings workflow. Option C is incorrect because an empty string is not saved for the OrchestratorQueueName key in the config dictionary. Option D is incorrect because the OrchestratorQueueName key is added to the config dictionary and the flow does not throw in Get Transaction Data workflow.

A personal workspace in UiPath Orchestrator is a type of modern folder that allows a user to work on their own automation projects without affecting other users or folders1. A personal workspace can be converted into a regular folder by using the Convert to Folder option in the folder settings2. When this happens, the owner of the initial workspace is added by default to the newly created folder and assigned the Folder Administrator role2. This role gives the user full control over the folder and its entities, such as processes, queues, assets, etc3. The other options are incorrect because they do not reflect the actual outcome of converting a personal workspace into a folder.

UiPath Robot logs capture execution details such as start time, end time, errors, warnings, and info messages. These logs help in monitoring, debugging, and auditing automation performance.

Where Are Logs Stored?

By Default:

Local text files (for debugging in AppData\Local\UiPath\Logs).

For Centralized Access:

UiPath Orchestrator (Best Practice) – Allows enterprise-level monitoring and analysis.

For Advanced Logging:

Database (Connected via Orchestrator SQL storage).

Custom Logging (Splunk, ElasticSearch, etc.) via UiPath Log Monitoring integration.

Why Other Options Are Incorrect?

A (Directly into a database) ❌

Logs are not stored directly into a database; instead, Orchestrator manages the logs and stores them in its connected SQL database.

B (Local text files only) ❌

Logs are stored locally by default, but this is not centralized access.

C (Microsoft Excel files) ❌

UiPath does not log directly into Excel files; however, logs can be exported to Excel manually.

The Read Range Workbook activity is part of the UiPath.Excel.Activities package and allows reading Excel data without requiring Excel to be installed.

Why Option C is Correct?

Supports both .xls (Excel 97-2003) and .xlsx (Excel 2007+) formats.

Works without installing Microsoft Excel, using UiPath's built-in Workbook activities.

Faster execution because it does not rely on the Excel application.

Why Other Options Are Incorrect?

A (Only .xls and Excel not needed) ❌

.xlsx files are also supported in Workbook activities.

B (Only .xlsm and requires Excel) ❌

.xlsm (macro-enabled) files can be read, but Excel is NOT required for reading non-macro content.

D (xlm instead of xlsm) ❌

.xlm is not a valid Excel format.
