UiPath UiPath-ADAv1 - UiPath Automation Developer Associate Exam (2023.10)

Workflow Analyzer is a tool in UiPath Studio that ensures projects follow best practices and coding standards.

Why is Option A Correct?

"Enforce Analyzer before Run" means:

UiPath prevents debugging (running the project) if there are Analyzer errors.

This ensures errors are fixed before testing the automation.

Why Other Options Are Incorrect?

B (Before Push/Check-in) ❌

Ensures compliance before committing to GIT/TFS but does not block debugging.

C (Before Remote Execution) ❌

Stops execution on remote machines, not local debugging.

D (Before Publish) ❌

Stops publishing to Orchestrator, but debugging is still allowed.

Understanding the Error:

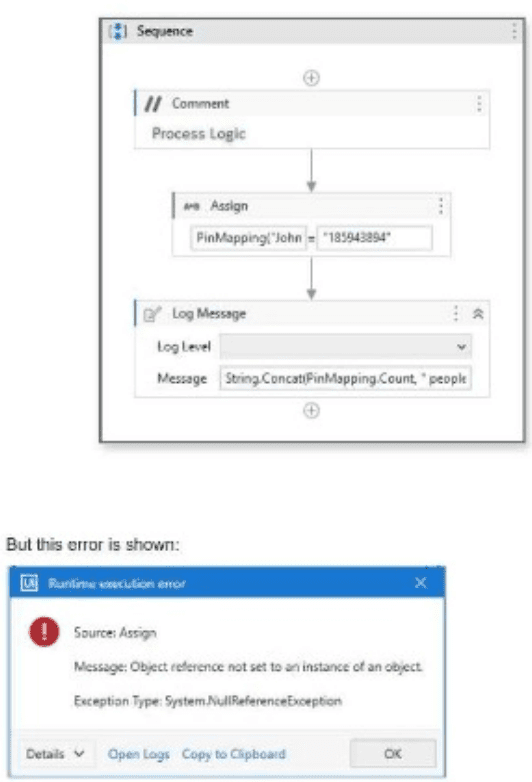

The runtime execution error shown in the image is:

pgsql

CopyEdit

Message: Object reference not set to an instance of an object.

Exception Type: System.NullReferenceException

This error occurs when trying to access or modify an object that has not been initialized.

Step-by-Step Breakdown of the Issue:

What is Happening in the Workflow?

The developer is trying to assign a value to the dictionary using:

PinMapping["John"] = "1195488487"

Then, they attempt to log the count of the dictionary items:

String.Concat(PinMapping.Count, " people")

The error occurs at the Assign activity.

What Causes a NullReferenceException in a Dictionary?

If a dictionary variable is declared but not initialized, it remains Nothing (null).

Trying to access or modify a null object causes a NullReferenceException.

The dictionary should be initialized before adding key-value pairs.

Why Option B is Correct?

✅ The Dictionary was not initialized.

The error occurs because the dictionary PinMapping is not initialized before assigning values.

To fix this, the dictionary must be initialized before use:

PinMapping = New Dictionary(Of String, String)

PinMapping("John") = "1195488487"

This ensures that the dictionary is properly instantiated in memory before accessing it.

Why Other Options Are Incorrect?

❌ A. "The 'John' key was not present in the dictionary."

Incorrect because a missing key does not cause a NullReferenceException.

Instead, attempting to retrieve a missing key causes a KeyNotFoundException.

The error in the screenshot is caused by the dictionary itself being null, not a missing key.

❌ C. "The assign's set value syntax should be PinMapping["John"]."

Incorrect because the syntax used in the Assign activity is correct.

The dictionary is of type Dictionary(Of String, String), and "John" is correctly specified as a string key.

❌ D. "The assign's set value syntax should be PinMapping<"John">."

Incorrect because PinMapping<"John"> is not valid syntax in VB.NET.

The correct syntax is PinMapping("John") or PinMapping["John"] (in C# syntax).

How to Fix the Error?

✅ Solution: Initialize the Dictionary Before Using It

Before using the dictionary, add the following initialization step:

PinMapping = New Dictionary(Of String, String)

Then assign values as needed:

PinMapping("John") = "1195488487"

Final Answer and Explanation:

✅ Answer: B. The Dictionary was not initialized.

Key Takeaways:

A NullReferenceException occurs when trying to use an uninitialized dictionary.

Always initialize a dictionary before adding key-value pairs.

A missing key does not cause this error—it would result in a KeyNotFoundException.

✅ Reference:

📌 UiPath Documentation – Dictionaries

📌 VB.NET – Dictionary Initialization

Comprehensive and Detailed In-Depth Explanation:

When automating UI interactions in UiPath, the Input Mode setting determines how the robot interacts with elements.

Understanding Input Modes in UiPath

Hardware Events (Foreground Mode)

Requires the window to be active (not minimized).

Uses the mouse and keyboard like a human user.

Fast but not suitable for background automation.

Simulate Click (Background Mode)

Sends direct API calls to the application.

Works even if the window is minimized.

Most efficient for unattended automation.

Send Windows Messages (Background Mode)

Sends Windows-level commands to interact with UI elements.

Works better than Hardware Events but slower than Simulate Click.

Step-by-Step Execution Guide: Automating Click on a Minimized Window

1️⃣ Select the Click activity in UiPath Studio.

2️⃣ Go to the Properties panel.

3️⃣ Set Input Mode to "Simulate Click" or "Send Windows Messages".

✅ Correct Configuration for Background Automation:

vb

CopyEdit

ClickActivity.InputMode = SimulateClick

💡 Now, the bot can click buttons even when the application window is minimized!

Real-World Use Case: Automating a Background File Upload

📌 A company needs to automate uploading files to a web application without interrupting employees.

Problem: The robot fails when the browser is minimized.

Solution:

Change Input Mode to "Simulate Click".

The bot now uploads files in the background while employees continue their work.

🚀 This makes automation efficient and non-disruptive!

Why the other options are incorrect?

❌ A. Click Type

Click Type (Single, Double, Right) affects how the click is performed, not whether it works on minimized windows.

❌ B. Input Element

Input Element refers to targeting specific UI elements, but does not control foreground/background execution.

❌ C. Key Modifiers

Key Modifiers (Ctrl, Shift, Alt) modify keyboard inputs, but they do not affect window visibility.

✅ Reference:

UiPath Documentation: Input Methods in UiPath

UiPath Forum: How to Automate Background Clicks
