Salesforce MuleSoft-Integration-Architect-I - Salesforce Certified MuleSoft Platform Integration Architect (Mule-Arch-202)

Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

To efficiently handle the invocation of vendor applications and retry requests that generate timeout errors, the most performant way is:

Scatter-Gather Scope: Use a Scatter-Gather scope to invoke each vendor application in parallel. This approach allows the API to send requests to both vendors simultaneously, reducing overall processing time.

Until-Successful Scope: Inside each route of the Scatter-Gather scope, use an Until-Successful scope to handle retries. The Until-Successful scope will retry the request in case of timeout errors until the request succeeds or the maximum retry limit is reached.

This combination ensures that the API can handle intermittent network issues efficiently while minimizing redundant transactions and maximizing performance.

References

MuleSoft Documentation on Scatter-Gather Scope

MuleSoft Documentation on Until-Successful Scope and Error Handling

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

Explanation

As the stakeholders are semitechnical users , preferred option is Create Anypoint Exchange entries with pages elaborating the integration design, including API notebooks (where applicable) to help the stakeholders understand and interact with the Mule applications and APIs at various levels of technical depth

Explanation

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

To extend Mule APIs to the EU (Frankfurt) region and minimize latency for European users, follow these steps:

Set Region Property: In Runtime Manager, for each Mule application deployment, set the Region property to EU (Frankfurt). This deploys the application to the desired region, optimizing performance for European users.

Reuse Application Names: Keep the same Mule application names as used in the North American region. This approach maintains consistency and simplifies management.

Communicate New URLs: Inform the consuming API clients in Europe of the new URLs in the format {API-name}—{environment}.de-ci.cloudhub.io. These URLs will direct the clients to the applications deployed in the EU region, ensuring reduced latency and improved performance.

This strategy effectively deploys the same Mule APIs to the CloudHub EU region, leveraging the existing control plane in North America.

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step Explanation

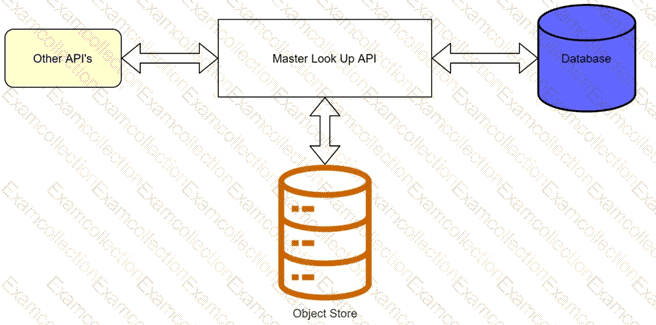

To resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

HTTP Caching Policy:

Purpose: Reduces the load on the database by caching the responses for GET requests. Once a response is cached, subsequent requests for the same resource can be served from the cache instead of querying the database.

Implementation: Apply the HTTP caching policy to all GET endpoints of the Master lookup API. This policy ensures that the frequently accessed master lookup data is stored in the cache and served quickly.

Benefits: This significantly reduces the number of database queries, thus lowering the response time and improving performance.

Object Store Locking:

Purpose: Ensures data consistency and prevents race conditions when multiple workers attempt to access or update the cache concurrently.

Implementation: Use a locking mechanism to synchronize access to the object store. This can be achieved by using MuleSoft’s Object Store Connector with lock/unlock operations.

Benefits: Prevents multiple database queries for the same key and ensures that only one worker updates the cache at a time, thus avoiding redundant operations and maintaining data integrity.

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

MuleSoft HTTP Caching Policy

MuleSoft Object Store Connector

* Sharing Mule applications as templates is a great way to share your work with other people who are in your organization in Anypoint Platform. When they need to build a similar application they can create the mule application using the template project from Anypoint studio.

* Anypoint Templates are designed to make it easier and faster to go from a blank canvas to a production application. They’re bit for bit Mule applications requiring only Anypoint Studio to build and design, and are deployable both on-premises and in the cloud.

* Anypoint Templates are based on five common data Integration patterns and can be customized and extended to fit your integration needs. So even if your use case involves different endpoints or connectors than those included in the template, they still offer a great starting point.

Some of the best practices while creating the template project: - Define the common error handler as part of template project, either using pom dependency or mule config file - Define common logger/audit framework as part of the template project - Define the env specific properties and secure properties file as per the requirement - Define global.xml for global configuration - Define the config file for connector configuration like Http,Salesforce,File,FTP etc - Create separate folders to create DWL,Properties,SSL certificates etc - Add the dependency and configure the pom.xml as per the business need - Configure the mule-artifact.json as per the business need

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same automated CI/CD deployment strategy, follow these steps:

Add runtimefabricDeployment Profile: Add a runtimefabricDeployment profile to the pom.xml file in all Mule applications. This profile will include the necessary configurations specific to RTF deployments.

Modify CI/CD Scripts: Update the CI/CD deployment scripts to use the new runtimefabricDeployment profile. This modification ensures that the deployment process will correctly reference the RTF-specific configurations when deploying applications.

Keep Configuration Files Unchanged: There is no need to change the pom.xml and Mule configuration YAML files other than adding the runtimefabricDeployment profile. This maintains consistency and reduces the risk of errors during the migration.

This approach ensures a smooth transition to RTF while leveraging existing CI/CD scripts with minimal changes, maintaining the automated deployment strategy.

References

MuleSoft Documentation on Runtime Fabric Deployment

Best Practices for CI/CD with MuleSoft
